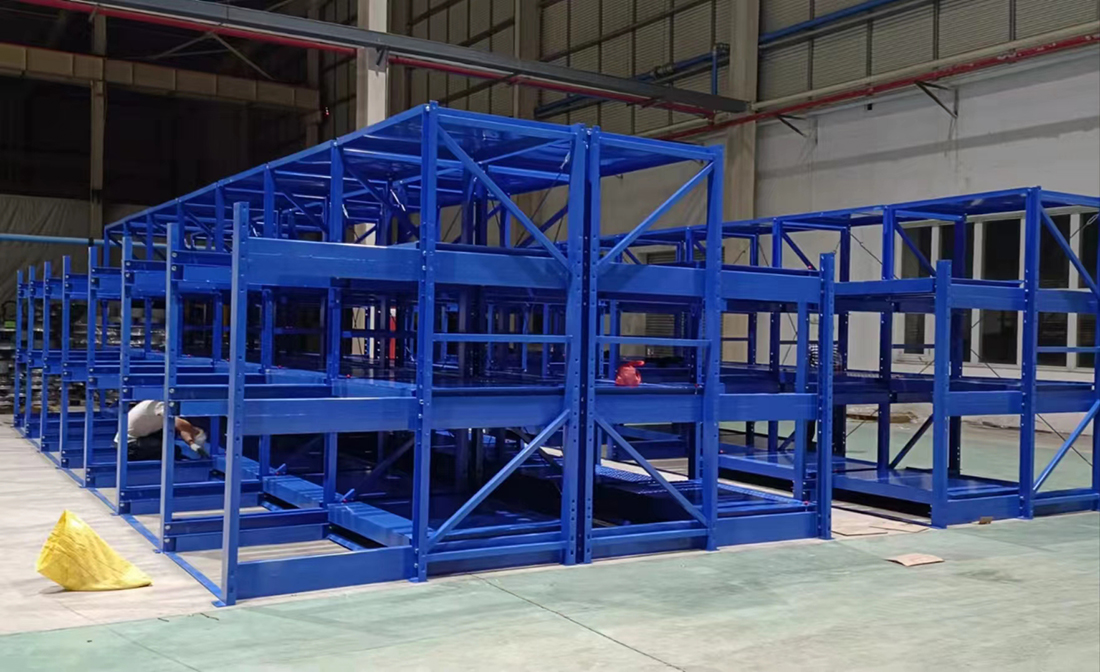

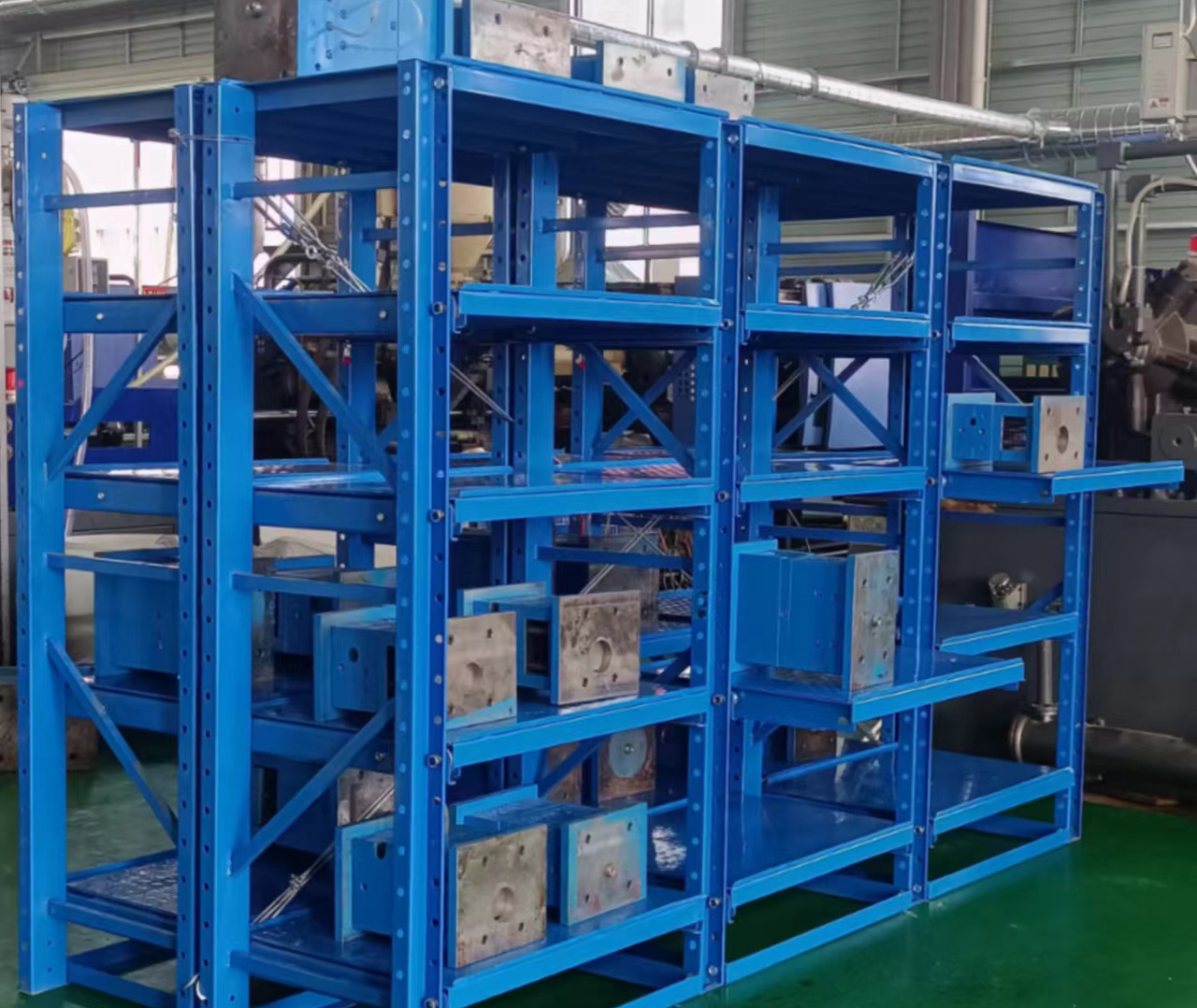

1. Combination assembly, mainly composed of column pieces, guide grooves, drawer layers, pull rods, positioning pins, etc,
Adopting bolt connection, the structure is stable, safe and reliable, and generally used in rows.
2. The drawer tray mainly consists of slide rails and drawer trays. The drawer tray is composed of a frame welded with rectangular tubes and bent parts, and steel plates.
Each slide rail is fixed by two bearings in front, back, up, and down, allowing for free rolling in the guide groove with low resistance and easy drawer pulling out.
3. For safety reasons, the drawer tray of the mold shelf has been designed with positioning pins and limit pins to ensure safety when the drawer tray is pulled out.
4. The lightweight mold shelf layer is loaded between 200 to 800kg/layer. Heavy-duty drawer type shelves are loaded in layers ranging from 800 to 1500kg/layer.
5. Mold shelves cover a small area, have large layers, detailed classification, and are easy to operate.
6. The mold shelf can also be used as a drawer tray on the crossbeam of the storage rack, which is more cost-effective and structurally stable.

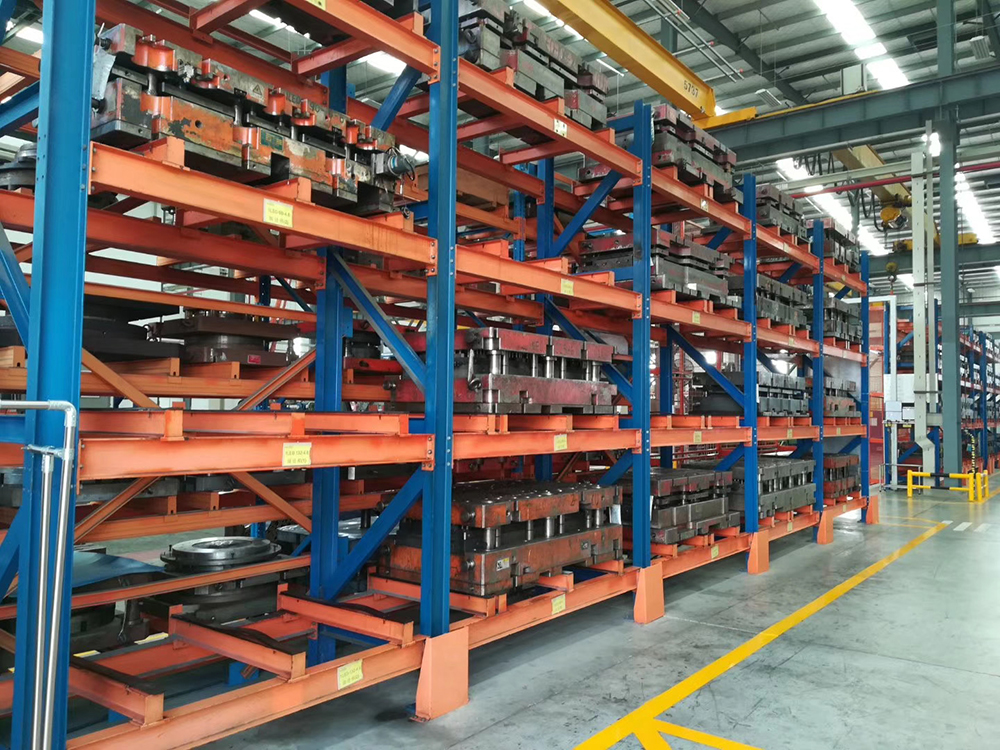

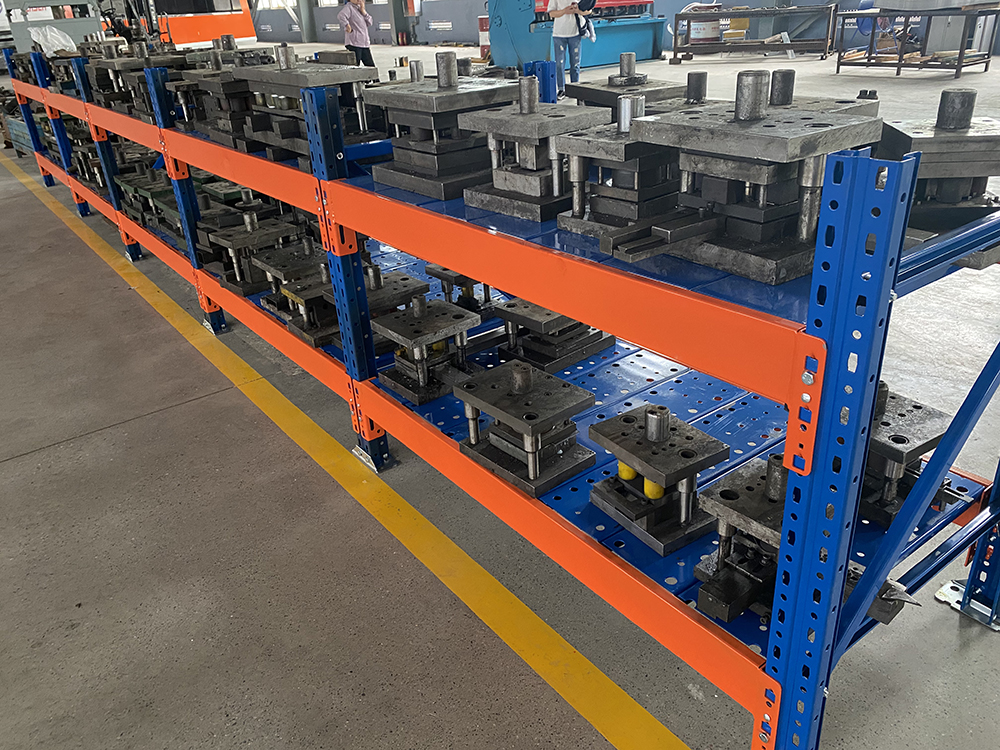

Mold shelves are generally used in industrial warehouses, mainly for storing heavy items such as molds.
